Mini-Mobile-Batching-Plant
Description of Product
Brand Name : Switeck IndiaManufacturers and Suppliers of Vacuum Dewatering System, Asphalt Cutter, Vibratory Earth Compactor, Bar Cutting Machine, Bar Bending Machine, Concrete Mixer, Tower hoist and Mini mobile batching plant
Specifications:
.jpg)

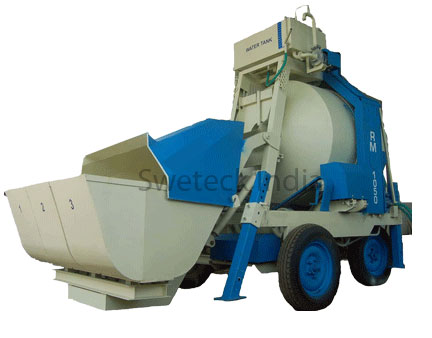

| Mini Mobile Batching Plant | |
|---|---|
| Model | SKI/RM-1050 |
| Capacity | 15 CUM/H. |
| Feeding System | Aggregate feeding system is equipped with inbuilt digital weighing system load cells based under each of three bins. |
| Mixing Drum | Reversible type crafted in M S Sheet with clockwise movement allows mixing and anti-clockwise movement allows complete discharge of concrete. |
| Loading Hopper | Hydraulic operated hoppers are provided with heavy- duty power pack. |
| Water Tank | Water tank of capacity 250 Liter is equipped with load cells to enable accurately weighing. |
| Water System | Automatic water control system with over flow stopping arrangement and to get the accurate quantity of water |
| Control Panel | Panel board comes with digital display of all the parameters also enables centralized operation. |
| MOVEMENT AND SUPPORT | A heavy duty, robust & balanced chassis. Movement assistance by a total of four heavy duty wheels. |
| Wheels | 04 Nos. Pneumatic Wheels |
| CONCRETE DISCHARGE | Approximate height of concrete discharge is 1.8meters. |
| DIMENSIONS AND WEIGHT | Dimension (mm): L 4200 X W 2350 X H 3350 Weight: 3200 kg |
| Model | SKI/RM-800 |
| Capacity | 10 CUM/H. |
| Feeding System | Aggregate feeding system is equipped with inbuilt digital weighing system load cells based under each of three bins. |
| Mixing Drum | Reversible type crafted in M S Sheet with clockwise movement allows mixing and anti-clockwise movement allows complete discharge of concrete. |
| Loading Hopper | Hydraulic operated hoppers are provided with heavy duty power pack. |
| Water Tank | Water tank of capacity 200 Liter is equipped with load cell to enable accurately weighing. |
| Water System | Automatic water control system with over flow stopping arrangement and to get the accurate quantity of water thru 1 hp. watter Pump |
| Panel Board | Panel board comes with digital display of all the parameters also enables centralized operation. |
| MOVEMENT AND SUPPORT | A heavy duty, robust & balanced chassis. Movement assistance by a total of four heavy duty wheels. |
| Wheels | 04 Nos. Pneumatic Wheels |
| CONCRETE DISCHARGE | Approximate height of concrete discharge is 1.5 meters. |
| DIMENSIONS AND WEIGHT | Dimension (mm): L 4200 X W 2000 X H 3150 Weight: 2800 kg |
