Compaction Equipment

Walk Behind Vibrator Roller (Double Drum)

Engine (Diesel)/Power	:Bopu Kipor
Working Width	:650 mm
Vibratory Frequency	:60 Hz
Grade Ability	:20
Centrifugal Force	:24KN
Water Tank Capacity	:35L
Drum Size (DIA X W)	:410 X 650
Max Traveling Speed	:2.5 KM/H
Transmission System	:Hydraulic
Weight (N.W./G/W)	:740 kg /780 kg appox

Walk Behind Vibrator Roller (Single Drum)

Walk Speed	:0-4 km/h
Climbing Control	:30*
Drive	:Hydrostatic drive
Vibration Control	:Automatic Clutch
Static Linear Load	:45N/cm
Nominal Amp;itude	:0.6mmm
Vibration Frequeny	:70Hz
Exciting Force	:15 KN
Hydraulic Oil Tank	:2L
Engine Modol	:Greaves 5520
Power	:5HP
Net Weight	:400kg(Appro)
Starting Mode	:Hand

Plate compactor

HZD160

Model	;HZD160
Width of Bace	:400 mm
Operation Weight	:95 Kgs
Centrifugal Foce	:11.5 KN
Frequency	:Motor 3 KW

Compactor

Cast Iron Plate thickness	;12mm
Centrifugal Force	:3-4Ton
Weight	:120 Kg
Available	:5 HP-Diesel Engine/ :Petrol Engine

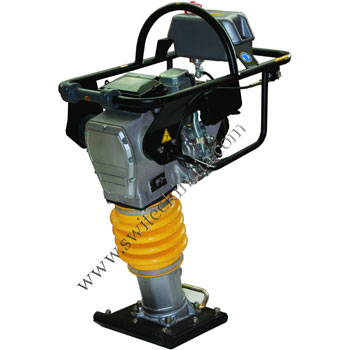

Rammers

Petrol Engine Rammers

Ramming Frequency	:600-700 times/min
Advance Speed	:10-13 m/min
Bounce Height	:45-70 mm
Gross Weight	:4kw
Engine Type	:GX160 Honda Air-cooled 4 -stroke OHV
Net Torque	:7.6 IB-ft(10.3Nm) @ 2.500 rpm

Petrol Engine Rammers

Ramming Frequency	:600-700 times/min
Advance Speed	:10-13 m/min
Bounce Height	:45-70 mm
Gross Weight	:4kw
Engine Type	:GX160 Honda Air-cooled 4 -stroke OHV
Net Torque	:7.6 IB-ft(10.3Nm) @ 2.500 rpm

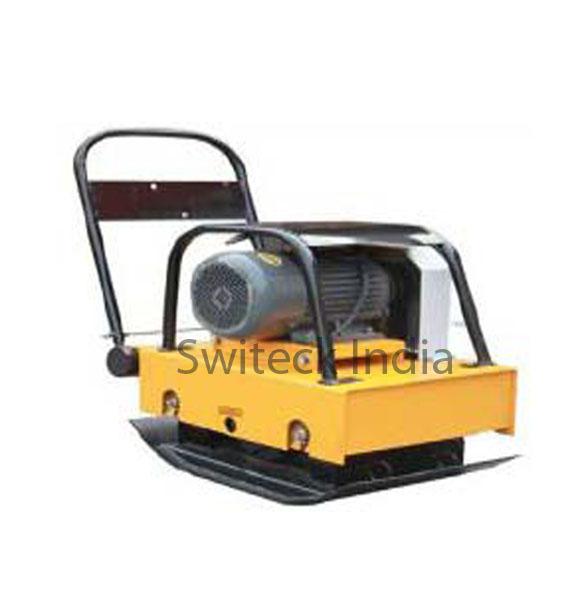

Compactor

Model	SKI/ECM-5
Weight	185 KG
Impact force	3500KG
Compaction Capacity	4 to 6 ton
Vibration Frequency	3000 RPM
Power Rating	5 HP 3 Phase Electric Motor.
Motor Make	Kirloskar/ABB
Plate Size	20x32 inch
Working Capacity	3000 Sqr Feet/H.
Depth effect	Up to 10”
Travel Speed	12 Meter/Minute
