Concrete cutter Machine

Description of Product

Brand Name : Switeck India

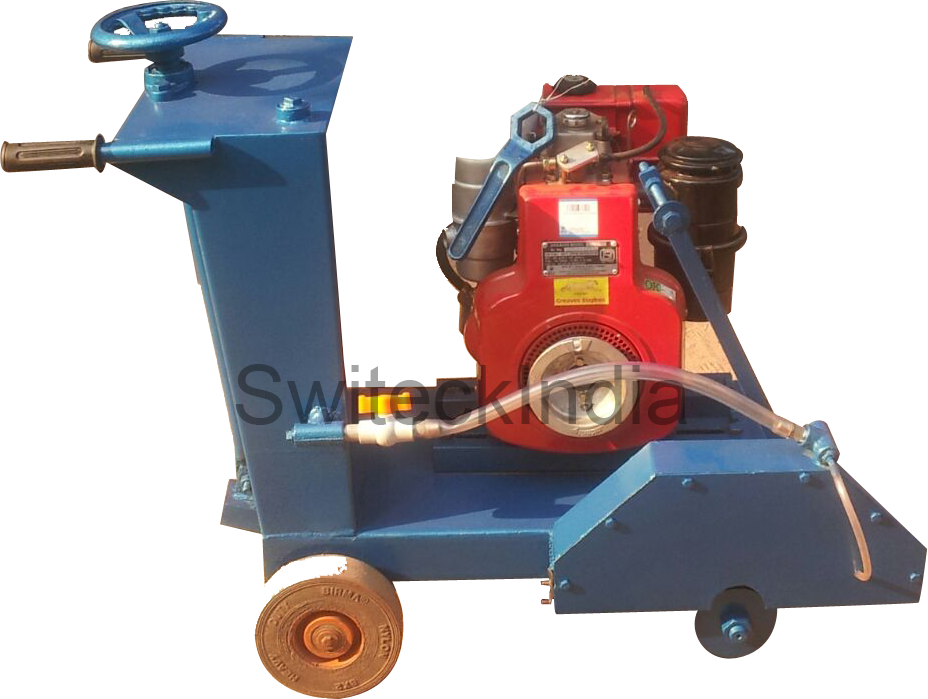

Concrete  cutting Machine Engine Operated
This is a diesel engine operated groove cutting machine an ideal equipment for cutting the hard concrete for expansion joints, Dummy joints (Shrinkage Control Joint), Asphalt pavement cut, pot hole repair cut. It is very light weight machine so operators can handle it easily. It gives accurate depth cut as per requirement because of the mechanism fitted in the machine. It is fitted with water spray attachment powered by Greaves make air cooled diesel engine. We also provide water tank (optionaly)as per requirement of the customer.



Concrete cutting Machine Engine Operated
Model :SKI/GCM/E-4 SKI/GCM/E-9
Depth Cut : Max. (5” Inch)
Prime Mover : 4.8HP Air cooled  Diesel Engine   Greaves Make Single Cylinder,      Vertical, Compressionignition       stroke
Blade Size- : 14” x 4MM
Max.(8” Inch.)
9 HP Air cooled  Diesel Engine Greaves Make Single Cylinder, Vertical, Compression ignition stroke
20” x 4MM






Concrete cutting Machine Electric Operated
This is electric operated Switech groove cutting machine an ideal equipment for cutting the hard concrete for expansion joints, Dummy joints (Shrinkage Control Joint), Asphalt pavement cut, pot hole repair cut. It is very light weight machine so operators can handle it easily. It gives accurate depth cut as per requirement because of the mechanism fitted in the machine. It is fitted with water spray attachment powered by electric motor. We also provide water tank (optionaly)as per requirement of the customer.


Concrete Cutting Machine Electric Oprated
Model :SKI/GCM-5

SkI/GCM-7

SKI/GCM-10
Max. depth cut : (2” Inch)
Prime Mover :

: 5 HP 3 Phase Electric
  Motor ABB Make

Blade Size-

: 12” 4MM

(3” Inch.)

7.5 HP 3 Phase Electric
Motor ABB Make

14” 4MM

(4” Inch.)

10 HP 3 Phase Electric
Motor ABB Make

16” 4MM

Model :SKI/GCM-15 SKI/GCM-20
Max. depth cut : (5” Inch)
Prime Mover

:15 HP 3 Phase Electric Motor ABB Make

Blade Size-

: 18” 4MM

(6” Inch.)

20 HP 3 Phase Electric
Motor ABB Make

20” 4MM








Concrete Cutter

Model

Diameter of saw

Capacity of water tank

Weight

Max Depth Cut

Available

: Hqr-500A

: 400-500 mm

: 20 Ltr

: 150 to 170 kg

: (7.5' Inch)

: [5-10 HP] Diesel Engine/
Petrol Engine/ Electric Motor
