Concrete Mixer With Mechanical Hopper
Concrete mixer without Hopper
| Capacity | :-10/7 CFT or 1 Bag |
| Power | :- 6.5 HP Air Cooled Diesel Engine 1000 rpm OR 3 HP Electric Motor 960 |
| Hopper | :- Without Hopper Hand Feed |
| Drum | :- Heavy duty C.I. lower drum with Drum cone of 3.15 mm M.s Plate and Heavy duty M.S.Blades for Effective Mixing |
| Yoke | :- Bearing System, Made of C.I. or 100x50 mm M.S. Channel Drum Type :-Tilting Type |
| Wheels | :- 500x19 Pneumatic Type with Hub & Bearing System and Steel Plate Rims |
| Chassis | :- Heavy Duty M.S. 100x50 mm Channel Chassis |
| Weight | :- 700 kg Aprox |
Concrete Mixer With Mechanical Hopper
| Capacity | :- 10/7 CFT or 1 Bag |
| Power | :-8 HP AIr Cooled Diesel Engine 1000 rpm OR 5 HP Electric Motor 960 rpm |
| Hopper | :- Clutch duty C.I. lower drum with Drum cone of 3.15mm M.S. Plate and Heavy duty M.S. Blades for Effective Mixing |
| Drum | :- Heavy duty C.I.lower drum with Drum cone of 3.15 mm M.S. Plate and Heavy duty M.S. Blades for Effctive Mixing |
| Yoke | :- Bearing System.made of C.I. or 100x50 mm M.S. Channel |
| Type | :- Tilting Type |
| Wheels | :- 500x19 Pneumatic Type with Hub & Bearing System and steel Plate Rime |
| Chassis | :- Heavy Duty M.S.125x65 mm Channel chassis |
| Weight | :- 1250kg |

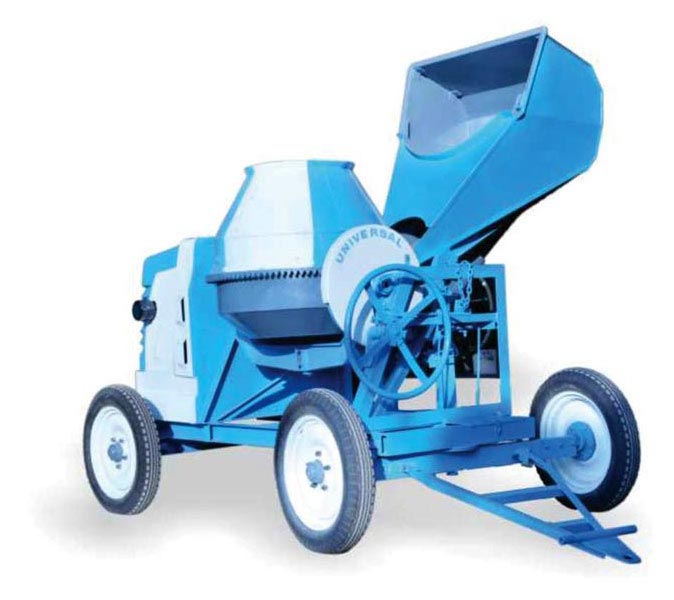

Concrete mixer with Hydraulic Hopper
| Capacity | :- 10/7 CFT or 1 Bag |
| Power | :-8 HP AIr Cooled Diesel Engine 1000 rpm OR 5 HP Electric Motor 960 rpm |
| Hopper |
:- Hydraulically Operated Hopper made of 3.15 mm M.S. Plate with Heavy Duty Power Pack |
| Hydraulic |
:- Single Action Hydraulic jack, Single Spool with Manually Operated Valve, ISI Marked Hose Pipes to Circulate the Oil |
| Drum | :- Heavy duty C.I.lower drum with Drum cone of 3.15 mm M.S. Plate and Heavy duty M.S. Blades for Effctive Mixing |
| Yoke | :- Bearing System.made of C.I. or 100x50 mm M.S. Channel |
| Type | :- Tilting Type |
| Wheels | :- 500x19 Pneumatic Type with Hub & Bearing System and steel Plate Rime |
| Chassis | :- Heavy Duty M.S.125x65 mm Channel chassis |
| Weight | :- 1000kg |

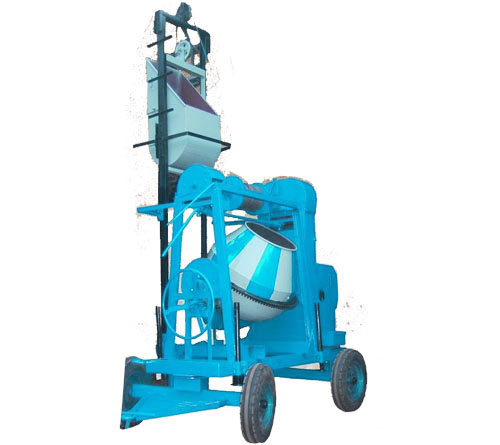

Concrete mixer with lift
Capacity :- 10/7 CFT or 1 Bag
Price Mover :- 10 HP Air Cooled Diesel Engine 1000 rpm OR 10 HP Electric Motor 960
Hopper :- Without Hopper Hand Feed
We offer an extensive range of 2 Tower Lift Concrete Mixer Machine, which is contrived using superior quality material with the help of our highly skilled engineers. Our offered ranges of these are strictly checked to offer the best quality and to ensure the process worthiness of the product. This concrete mixer machine with lift is highly used in various construction industries for mixing of water, sand and cement to produce perfectly blended concrete. Customers can purchase these from us at reasonable prices which are highly valued for its smooth operations and durability.
Mini Mixer
| OrumCapacity | 6.5 CF/180 Ltr |
| Drum Diameter | 26' |
| Voltage/Hz | 220V 50 Hz |
| Motor Power | 900 w |
| Motor Speed | 2800[2880] |
| Weight | 60 to 65 kg |
