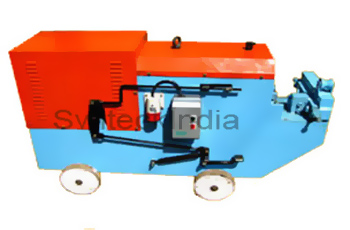

Bar Cutting Machine Hydraulic
Description of Product
Brand Name : Switeck IndiaManufacturers and Suppliers of Vacuum Dewatering System, Asphalt Cutter, Vibratory Earth Compactor, Bar Cutting Machine and Bending Machine
Specifications:
Bar Cutting Machine Hydraulic
Model
Power Rating:
Motor Make
Cut capacity
Strokes/Minute
Starter
Plug
Blades
Width 650MM
Motor Make
Cut capacity
Strokes/Minute
Starter
Plug
Blades
Machine-Dimension
Length 1350 MMWidth 650MM
:SKI/BCM-H32
:5 HP Elec. Motor (3 phase).
: ABB/Kirloskar
:Upto 32 mm TMT/TORSteel-Bars.
:25 to 30
:Seimense Make
:Bals Make
:heavy duty tempered steel Dimension 3”x3 thickness-1inch Blades can be used 8 times by rotating four times and by change the side
: ABB/Kirloskar
:Upto 32 mm TMT/TORSteel-Bars.
:25 to 30
:Seimense Make
:Bals Make
:heavy duty tempered steel Dimension 3”x3 thickness-1inch Blades can be used 8 times by rotating four times and by change the side
SKI/BCM-H42
:7.5 HP Elec. Motor (3 phase).
:ABB/Kirloskar
:upto 42 mm TMT/TOR Steel Bars.
:25 to 30
:Bals Make
:heavy duty tempered steel Dimension 3”x3 thickness-1inch Blades can be used 8 times by rotating four times and by change the side.
:Machine Dimension
Length : 1350 MM
Width : 650MM
Height : 870 MM
:7.5 HP Elec. Motor (3 phase).
:ABB/Kirloskar
:upto 42 mm TMT/TOR Steel Bars.
:25 to 30
:Bals Make
:heavy duty tempered steel Dimension 3”x3 thickness-1inch Blades can be used 8 times by rotating four times and by change the side.
:Machine Dimension
Length : 1350 MM
Width : 650MM
Height : 870 MM
Bar Cutting Machine
GQ50- for 6mm to 40mm
Diameter of cut steel bar :40mm
Frequency of shock cutting :28 time/min
Motor Power :4KW.Voltage 415v
Rotation speed of motor :2880 r/min
Total weight :550 kg
Frequency of shock cutting :28 time/min
Motor Power :4KW.Voltage 415v
Rotation speed of motor :2880 r/min
Total weight :550 kg
Bar Cutting Machine
GQ40- for 6mm to 32mm
Diameter of cut steel bar :32 mm
Frequency of shock cutting :32 times/min
Motor Power 3 KW.Voltage :415V
Rotation speed of motor :2880 r/min
Total Weight :400 kg
Frequency of shock cutting :32 times/min
Motor Power 3 KW.Voltage :415V
Rotation speed of motor :2880 r/min
Total Weight :400 kg
Automatic Bar Bending Machine
GW50-for 6 mm to 40 mm
Bending rebar diameter :40 mm
Plate diameter :360 mm
Bending Speed :3-15 r/min
Motor Power :4kw. Voltage: 415V
Moter speed :1440 r/min
Weight :430 kg
Plate diameter :360 mm
Bending Speed :3-15 r/min
Motor Power :4kw. Voltage: 415V
Moter speed :1440 r/min
Weight :430 kg
Automatic Bar Bending Machine
GW 42-for 6mm to 32mm
Bending rebar diameter :32mm
Plate diameter :360 mm
Bending Speed :10-12 r/min
Motor power :3KW. Voltage 415 V
Motor speed :1440 r/min
weight :320 kg
Plate diameter :360 mm
Bending Speed :10-12 r/min
Motor power :3KW. Voltage 415 V
Motor speed :1440 r/min
weight :320 kg
